Have you ever noticed how a small plastic cap can make or break product safety? From medicine bottles to spray triggers, these tiny components do more than you think. Plastic caps and plugs are critical for sealing, protecting, and preserving the quality of products. They prevent leaks, contamination, and mechanical damage across industries like food, pharmaceuticals, cosmetics, and automotive. In this post, you’ll learn the different types of plastic caps and plugs, the materials they’re made from, and how they’re used in real-world applications. We’ll also explore how to choose the right plastic cap based on performance, cost, and function.
A plastic cap is a small yet essential part used to seal, cover, or protect openings in containers, tubes, and mechanical parts. It keeps things in—or keeps things out. You’ll find it on everything from shampoo bottles to industrial machines. It forms a barrier that prevents leaks, contamination, or damage.
So, what makes a cap different from a plug? A cap goes over an opening, covering the external edges of the container or fitting. A plug fits inside the hole, pressing into the internal surface. That small difference changes how they’re used.
Caps also vary in how they seal. Some seal by pressing tight against the outside surface. Others screw on, twist-lock, or snap into place. These sealing types help match different use cases—from keeping liquids fresh to blocking dust or moisture.
Plastic caps don’t all serve the same purpose. Some are designed to keep air out, others to let gases escape, and some only to shield items during shipping or storage.
Sealing caps are all about creating an airtight or leak-proof barrier. They’re used a lot in food packaging, drinks, and pharmaceuticals. These caps are often thicker, more rigid, and come with a soft inner ring for better sealing.
In some cases, they include snap-fit ribs that click into place for faster closure during production. Others use tamper-evident bands—a thin strip that breaks if the cap is opened. These features help improve safety and consumer trust.
Some liquids or chemicals release gases over time. If the cap doesn’t vent, pressure can build and cause leaks—or worse. That’s where vented plastic caps come in.
These allow air to pass while blocking liquids. They’re common on cosmetics, agrochemicals, and industrial solvents. Inside, they often use microporous membranes, like silicone or ePTFE. These membranes have tiny holes—small enough to stop liquids but large enough to release air.
When sealing isn’t needed, protection is. These plastic caps shield parts during transit or storage. They’re often used to prevent scratches, dirt buildup, or paint overspray.
Made from soft, flexible materials like vinyl, they’re easy to press on or pull off. Many have textured surfaces or ribbed edges to help users apply or remove them quickly. These are ideal for covering bolts, threads, or pipe ends.
Not all plastic caps are simple. Some have advanced features that serve critical functions—especially in regulated industries or ergonomic tools.

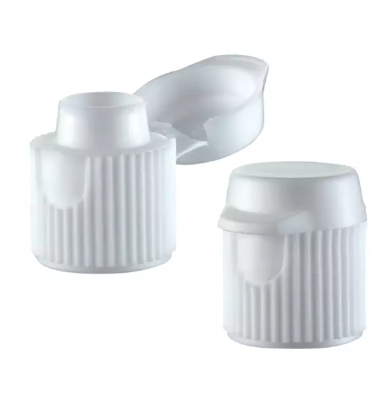

Child-resistant caps are one example. These require two-step actions like push-and-turn to open. They’re made for products like medicine or cleaners where safety matters most.

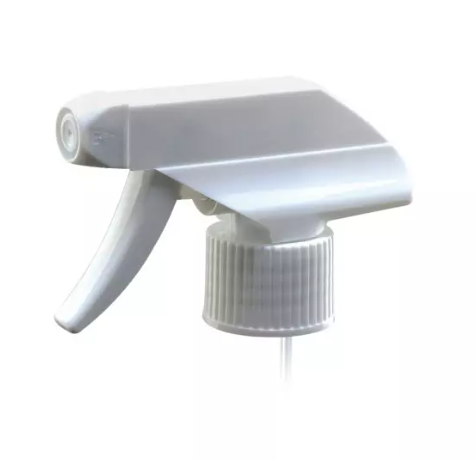

Other caps focus on user comfort. Trigger sprayer caps use ergonomic ribs and shapes that improve grip. This reduces hand strain during repetitive use.
Some plastic caps are made for high-sterility environments. These include aseptic designs that can be sterilized using radiation or gas. Others include hidden markers, like engraved internal codes, to fight counterfeiting.
| Cap Type | Key Feature | Common Use Cases |
|---|---|---|
| Sealing Cap | Leak-proof inner seal | Beverages, medications |
| Vented Cap | Breathable membrane | Lotions, chemicals, sprayers |
| Protective Cap | Loose or friction fit | Machinery, tools, furniture legs |
| Child-Resistant Cap | Safety lock mechanism | Medicine, cleaners |
| Ergonomic Grip Cap | Textured surface for torque | Household sprays, cosmetics |
| Aseptic Cap | Sterilizable materials | Medical packaging |
Not all plastic caps are created equal. Each material offers a different mix of flexibility, durability, and resistance. Choosing the right one depends on what the cap needs to handle—liquid, pressure, temperature, or chemicals.
Let’s break it down. Here’s a quick view of how common materials compare when it comes to temperature limits, cost, and food safety.
| Material | Max Temp (°C) | Chemical Resistance | Avg. Cost (per 1,000) | Food Safe |
|---|---|---|---|---|
| HDPE | 120 | Excellent | $25–$35 | Yes |
| LDPE | 80 | Good | $20–$30 | Yes |
| PP | 100 | Good | $15–$25 | Yes |
| PVC | 80 | Moderate | $15–$20 | No |
| Silicone | 315 | Excellent | $120–$150 | Yes |
| Rubber | 150 | Moderate to Good | $40–$60 | No |
| TPE | 95 | Excellent | $30–$45 | Sometimes |
If you're working with food or pharmaceuticals, stick to materials rated for safety—HDPE, PP, or Silicone. For basic shipping protection or industrial masking, less expensive materials like PVC or Rubber may work just fine.
HDPE stands up well to harsh environments. It stays strong under pressure and resists most chemicals. We see it often used where safety matters—like in beverage packaging or chemical seals. But it can get brittle in extreme cold.
PP is lighter and more flexible. It bends but doesn’t break. If you're capping something that will twist or flex, PP handles the stress better. It’s also cheaper than HDPE, so it’s popular where budget matters more than top-end performance.
Vinyl is soft and grippy. It molds to surfaces and offers a snug fit, even for odd shapes. That makes it useful in protective caps or temporary seals. However, it doesn't like high heat. So avoid it for anything exposed to long sunlight or hot water.
Silicone is the go-to when heat is a problem. It handles oven-level temps without melting or breaking down. You’ll see it in baby bottle caps, lab gear, or medical closures. It’s flexible, long-lasting, and safe—but pricey.
Rubber, like EPDM, is a bit tougher and cheaper. It’s stretchy and seals well, but sunlight or time can break it down. It works well in cars, tools, or equipment that won’t face extreme temperatures.
TPE blends the best of both. It stretches like rubber, molds like plastic, and resists the sun. It’s often used in industrial caps or caps meant to be reused. You’ll find it in hoses, sprayers, or anything needing repeated sealing.
If you’re deciding between these three, ask this: does the cap need to survive heat, flex a lot, or hold up outdoors? The answer will point to the right choice.
Injection molding is the top choice for high-volume, high-precision plastic cap production. It begins by feeding thermoplastic pellets—like HDPE or PP—into a heated barrel. Inside, a screw pushes the softened plastic toward the mold. When ready, pressure forces the material into a cavity that defines the cap’s final shape.
This method creates caps with tight tolerances, uniform wall thickness, and detailed features. That’s why it’s perfect for caps that must seal tightly, screw on securely, or include tamper-evident rings. After shaping, the mold cools and ejects the hardened cap. This step repeats rapidly, producing thousands of identical parts per hour.
Benefits? Consistency, speed, and minimal material waste. It's also easier to automate than other methods. When your plastic cap needs to pass leak tests or screw on perfectly every time, injection molding is usually the way to go.
Dip molding is better suited for soft, stretchable plastic caps—especially those made from vinyl or plastisol. Instead of injecting plastic into a mold, the process involves dipping a metal form into a liquid plastic bath.
It starts by heating the metal mold to a specific temperature. Then it’s dipped slowly into the molten plastic. The plastic sticks to the hot surface, forming a thin, flexible layer. The longer it stays in, the thicker the cap gets.
Next, it’s moved to a curing oven. That’s where the layer solidifies and bonds together. After curing, the mold is cooled—often in water or under airflow—before the finished cap is pulled off.
This method is ideal for caps that protect threads, pipes, or edges during shipping. It allows for textured finishes and odd shapes. While it’s not as precise as injection molding, it’s fast and affordable for certain designs.
Sometimes a plastic cap needs multiple materials fused into one unit—like a rigid body paired with a breathable membrane. That’s where bonding methods come in.
Thermal bonding uses heat and pressure to fuse two plastic parts. It’s a simple process but not always strong under stress or chemicals.
Ultrasonic welding, on the other hand, uses high-frequency vibrations to generate heat at the contact point. This melts and joins the surfaces instantly—no glue, no heat guns. The result? A clean, tight bond that holds up well under pressure and temperature changes.
This is especially important in vented plastic caps, where a soft membrane must stay locked inside a hard shell. Compared to adhesives, ultrasonic welding offers more strength, longer life, and no messy residue.
| Manufacturing Method | Best For | Key Advantage |
|---|---|---|
| Injection Molding | Threaded, tamper-evident caps | High precision and repeatability |
| Dip Molding | Soft, flexible vinyl caps | Custom shapes and textures |
| Ultrasonic Welding | Composite or vented plastic caps | Strong, clean, adhesive-free bond |
The right plastic cap does more than seal—it must match where and how it’s used. If the product sits outdoors, the cap should handle UV rays, heat, and cold. For indoor use, humidity or temperature shifts might still affect performance.
It’s also important to match the cap to the container material. Some plastics don’t grip glass well. Others may react chemically with metal or low-grade plastics. A mismatch could cause leaks, warping, or even product failure.
Don’t forget the sealing function. Is it just for dust protection, or does it need to hold pressure? Some caps use inner rings or dual layers to seal against liquids or gas buildup. Others rely on thread tightness. The more critical the contents, the more precise your seal should be.
| Selection Factor | Why It Matters |
|---|---|
| Environment | Affects material durability and UV resistance |
| Container Compatibility | Prevents leaks and cracking |
| Sealing Requirements | Impacts safety, pressure retention |
Many people skip torque testing, but that’s risky. If your plastic cap twists too easily or too tightly, it may not seal well—or it might break. Always check how much torque the cap can handle.
In food packaging, don’t assume all plastics are safe. Using non-FDA-approved materials could lead to contamination and legal trouble. HDPE and PP are safer picks, but always verify certification.
Watch for high-stress environments. Some plastic caps look fine at first but crack under extreme use or heat. Flexible vinyl works well for shipping but may fail under pressure. For high-torque or high-heat settings, go with tested, tougher materials.
Use samples when in doubt. Try a cap in the real setting. Look for leaks, pressure loss, or physical damage. It’s better to test early than fix mistakes later.
Plastic caps and plugs are more than simple covers—they’re key to safety, storage, and performance across industries. Their role continues to grow as packaging demands evolve. Today’s designs focus on smarter sealing, longer durability, and even recyclability.
New materials and technologies help meet tougher safety and environmental standards. From venting membranes to tamper-proof locks, innovation drives every design forward. As options expand, it's important to choose wisely.
Always consider where and how your plastic cap will be used. Think about temperature, sealing strength, material safety, and compliance. The right cap protects more than a container—it protects your product, your brand, and your user.
A: Plastic caps are used to seal, protect, or cover containers, tubes, and mechanical parts. They prevent leaks, contamination, and damage during storage, transport, or use.
A: Plastic caps cover the outer edges of openings, while plugs fit inside. Caps are typically used for sealing tops, and plugs for internal closures.
A: HDPE, PP, and silicone are commonly used for food-safe plastic caps because they are FDA-compliant and offer strong chemical resistance.
A: Silicone is the most heat-resistant material for plastic caps, withstanding temperatures up to 315°C without degrading or losing flexibility.
A: Most plastic caps are made using injection molding for precision or dip molding for flexible designs. Some also use ultrasonic welding for multi-material seals.
